Service Mesh

Objective

Background

For more information on why the Panfactum stack includes a service mesh and why we chose Linkerd, check out our concept documentation.

Deploy Linkerd2

Linkerd is likely the most popular service mesh for Kubernetes, and we provide a module for deploying it: kube_linkerd

This module not only deploys linkerd but also connects it to the certificate infrastructure that we provisioned in the previous section. It also installs linkerd-specific observability tooling that we will review later.

Let's deploy the module now:

Create a new directory adjacent to your kube_cert_manager module called kube_linkerd.
Add a terragrunt.hcl to that directory that looks like this.
Run pf-tf-init to enable the required providers.
Run terragrunt apply.

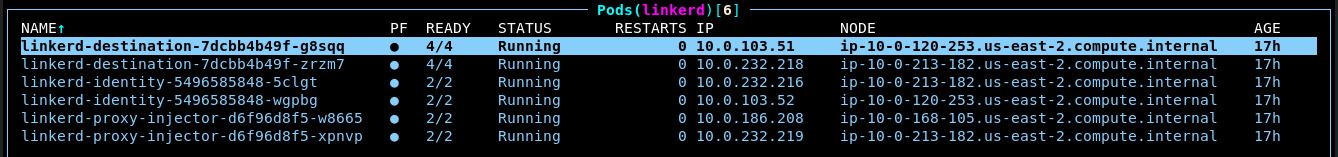

You should see a variety of linkerd pods successfully running:

Test the Mesh

Control Plane Checks

Linkerd comes with a companion cli tool, linkerd. This tool is included in the Panfactum devShell.

Use it to run linkerd check. You should see a successful output like this:

kubernetes-api
--------------
√ can initialize the client
√ can query the Kubernetes API

kubernetes-version
------------------
√ is running the minimum Kubernetes API version

linkerd-existence
-----------------
√ 'linkerd-config' config map exists
√ heartbeat ServiceAccount exist
√ control plane replica sets are ready
√ no unschedulable pods
√ control plane pods are ready
√ cluster networks contains all pods
√ cluster networks contains all services

linkerd-config
--------------
√ control plane Namespace exists
√ control plane ClusterRoles exist
√ control plane ClusterRoleBindings exist
√ control plane ServiceAccounts exist
√ control plane CustomResourceDefinitions exist
√ control plane MutatingWebhookConfigurations exist
√ control plane ValidatingWebhookConfigurations exist
√ proxy-init container runs as root user if docker container runtime is used

linkerd-identity
----------------
√ certificate config is valid
√ trust anchors are using supported crypto algorithm
√ trust anchors are within their validity period
√ trust anchors are valid for at least 60 days
√ issuer cert is using supported crypto algorithm
√ issuer cert is within its validity period
√ issuer cert is valid for at least 60 days
√ issuer cert is issued by the trust anchor

linkerd-webhooks-and-apisvc-tls
-------------------------------
√ proxy-injector webhook has valid cert
√ proxy-injector cert is valid for at least 60 days
√ sp-validator webhook has valid cert
√ sp-validator cert is valid for at least 60 days
√ policy-validator webhook has valid cert
√ policy-validator cert is valid for at least 60 days

linkerd-version
---------------
√ can determine the latest version
‼ cli is up-to-date
    is running version 24.3.3 but the latest edge version is 24.3.4
    see https://linkerd.io/2/checks/#l5d-version-cli for hints

control-plane-version
---------------------
√ can retrieve the control plane version
‼ control plane is up-to-date
    is running version 24.3.3 but the latest edge version is 24.3.4
    see https://linkerd.io/2/checks/#l5d-version-control for hints
√ control plane and cli versions match

linkerd-control-plane-proxy
---------------------------
√ control plane proxies are healthy
‼ control plane proxies are up-to-date
    some proxies are not running the current version:
	* linkerd-destination-7dcbb4b49f-g8sqq (edge-24.3.3)
	* linkerd-destination-7dcbb4b49f-zrzm7 (edge-24.3.3)
	* linkerd-identity-5496585848-5clgt (edge-24.3.3)
	* linkerd-identity-5496585848-wgpbg (edge-24.3.3)
	* linkerd-proxy-injector-d6f96d8f5-w8665 (edge-24.3.3)
	* linkerd-proxy-injector-d6f96d8f5-xpnvp (edge-24.3.3)
    see https://linkerd.io/2/checks/#l5d-cp-proxy-version for hints
√ control plane proxies and cli versions match

linkerd-extension-checks
------------------------
√ namespace configuration for extensions

Status check results are √

Note that you may receive some warning about components not being up-to-date. Linkerd produces many minor releases and these warning are benign. You should stick with the default version included in the Panfactum stack unless you have a specific reason to deviate.

Verify Certificate Rotation

While linkerd may be working after the initial deploy, we also want to ensure it continues to work after its certificates are rotated.

Rotate the certificates now:

cmctl renew -n linkerd \
    linkerd-identity-issuer \
    linkerd-policy-validator-k8s-tls \
    linkerd-proxy-injector-k8s-tls \
    linkerd-sp-validator-k8s-tls

Install Viz

Linkerd also comes with a handy debugging suite called viz that can be easily installed (temporarily) using the cli. Run this now: linkerd viz install | kubectl apply -f -.

Inject Sidecars

Do not begin this step until the Viz components from the previous step are fully deployed.

Linkerd works by injecting sidecar containers into your pods to connect them to the mesh. This happens on pod creation so already existing pods will not have any sidecars injected. Let's restart them to connect them to the mesh:

Using k9s, restart all your deployments not in the linkerd namespace:
Navigate to :deployments. Don't forget to change the namespace filter to "all" by pressing 0.
Select each deployment by pressing <space>.
Press r to restart.
Perform a similar restart to :statefulsets and :daemonsets.
Notice that the new pods have linkerd sidecar containers:

Verify Data Plane

Run linkerd viz tap ns/vault to start monitoring traffic in the vault namespace.
Rotate a certificate to force cert-manager to connect with Vault: cmctl renew -n cert-manager cert-manager-webhook-certs.

The tap session should produce a response similar to this:

req id=0:0 proxy=in  src=10.0.186.223:40976 dst=10.0.232.215:8200 tls=true :method=POST :authority=vault-active.vault.svc.cluster.local:8200 :path=/v1/auth/kubernetes/login
rsp id=0:0 proxy=in  src=10.0.186.223:40976 dst=10.0.232.215:8200 tls=true :status=200 latency=69451µs
end id=0:0 proxy=in  src=10.0.186.223:40976 dst=10.0.232.215:8200 tls=true duration=57µs response-length=763B
req id=0:1 proxy=in  src=10.0.186.223:40976 dst=10.0.232.215:8200 tls=true :method=POST :authority=vault-active.vault.svc.cluster.local:8200 :path=/v1/pki/internal/sign/vault-issuer
rsp id=0:1 proxy=in  src=10.0.186.223:40976 dst=10.0.232.215:8200 tls=true :status=200 latency=56146µs
end id=0:1 proxy=in  src=10.0.186.223:40976 dst=10.0.232.215:8200 tls=true duration=210µs response-length=3914B

Notice that the src IP address will be one of the cert-manager pods and the dst will be one of your Vault pods. Additionally, notice that tls=true indicates that the request came over a TLS connection even though Vault itself was never configured with TLS. This is the service mesh sidecar container in action.

The Linkerd documentation also provides even more granular methods that you can use to validate the security of your traffic.

Remove Viz

We will revisit observability tooling in a later section, so for now, let's remove the manually created viz to keep the cluster clean of redundant resources:

linkerd viz install | kubectl delete -f -

Next Steps

At this point, all the necessary components for powering internal cluster networking are configured. However, before we configure external networking, we will address autoscaling as the cluster is likely already running 75+ containers and will soon become resource constrained.
